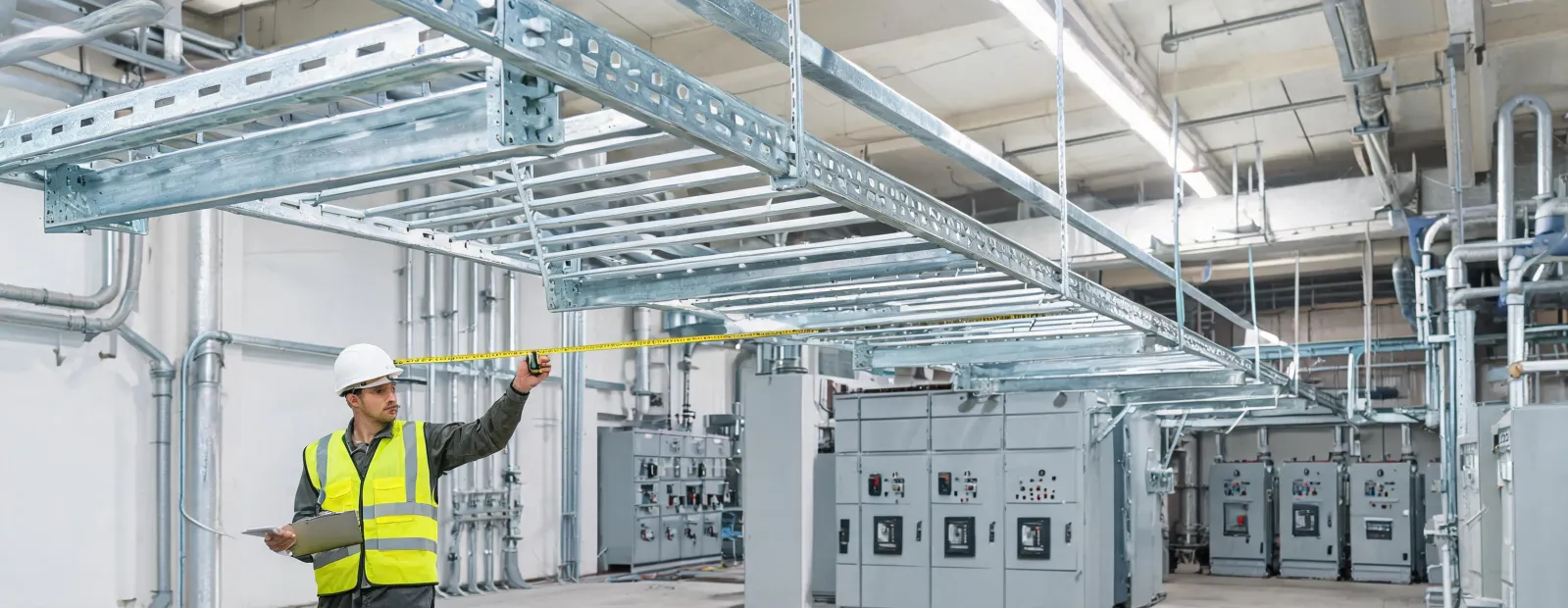

Cable tray engineering team reviewing an industrial route

Drawing-to-delivery workflow

Cope Cable Tray Project Services

Engineering support organizes route geometry, cable loading, materials and accessories into a reviewable bill of material.

Four work packages, each with a defined output

Route takeoff

Plan views, risers and cable schedules are reconciled to identify straight sections, horizontal and vertical bends, tees, crosses, reducers, splice locations and cover requirements. Open questions are returned as marked assumptions, including missing elevations or ambiguous transition radii.

Mechanical selection

Tray width, side-rail depth, material, finish and support span are considered together. Concentrated cable drops and fittings may require closer supports than straight runs. Published series data remains the governing reference for allowable working load and deflection.

Submittal assembly

The output aligns scheduled items with drawings, accessories and available technical documents. Certification or standard claims are attached only where the selected series and destination market support them; nothing is generalized across an entire catalog.

How a schedule moves through review

1. Intake: provide route drawings, cable list, support concept, indoor or outdoor exposure and the project code basis.
2. Assumption register: unresolved loads, spans, fire barriers, grounding interfaces and finish questions are listed before quantities are finalized.
3. Technical pass: tray construction and accessories are checked against route geometry and installation constraints.
4. Commercial handoff: the reviewed schedule becomes the basis for quotation, alternates and delivery sequencing.

Scope boundary: This service does not replace the engineer of record, field structural verification, cable ampacity calculations or local authority approval. Seismic supports, fire stopping and hazardous-location requirements require project-specific engineering.

A traceable answer, including what remains unknown

Every response distinguishes documented series data from project assumptions. If a support span, cable weight or corrosive condition is missing, it is flagged for resolution rather than concealed inside a generic selection.

Start with the route package

Attach the cable schedule and marked plan. Include preferred tray construction, material constraints and required submittal date.

Plan and elevation drawings
Cable types, quantities and weights
Support spacing and environmental notes
